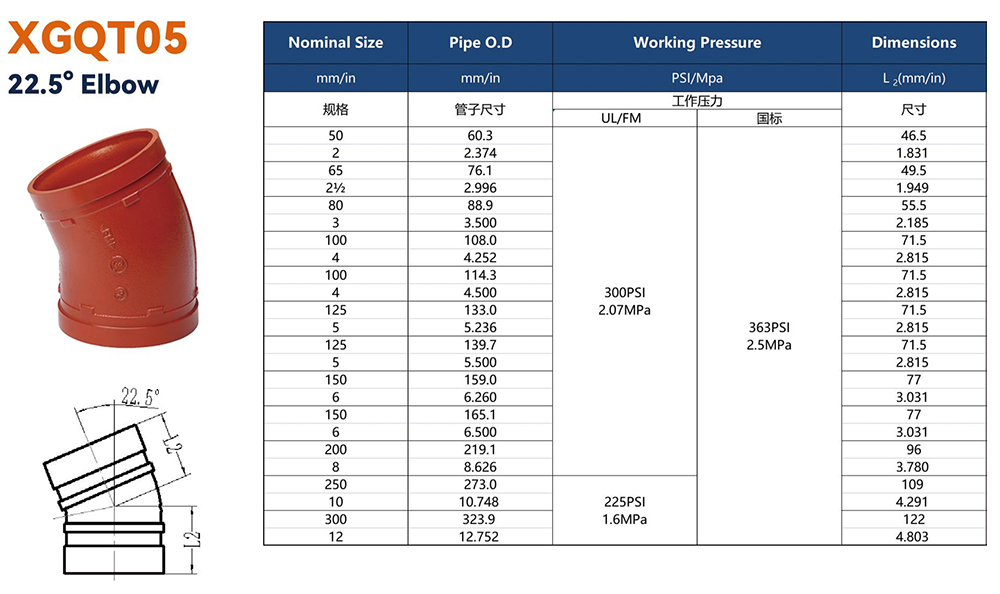

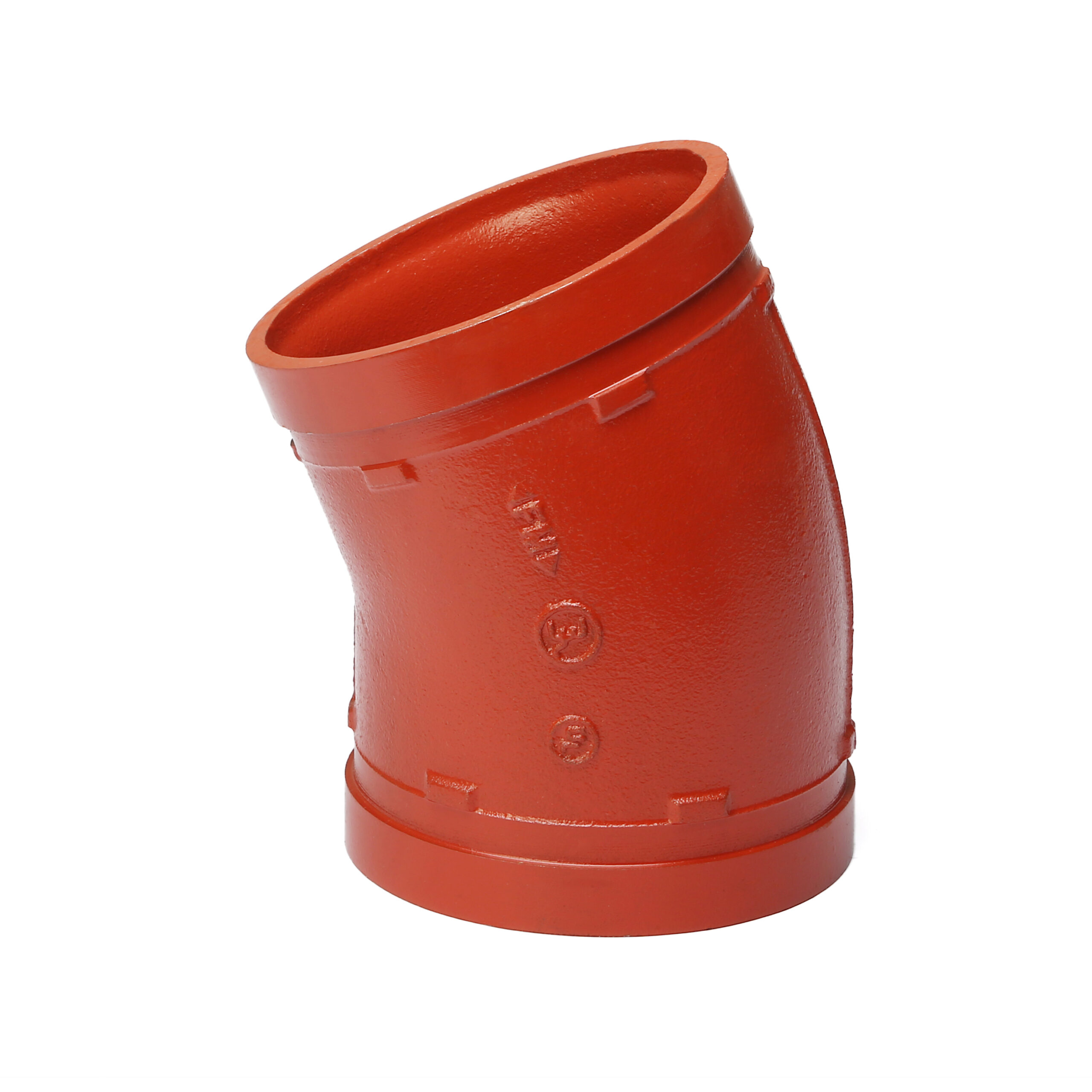

22.5° Grooved Elbow

Bending angle:


Available sizes:

2 – 12 inch

Working pressure:

300 PSI


FM approved / UL certified

Ductile cast iron:

ASTM A536 65-45-12


Red painted / galvanized / epoxy blue / grey

Product Description

Grooved elbows provide an economical and efficient method of changing direction in grooved piping systems. According to the angle, there are two most commonly used: 45° and 90°. 22.5 degrees elbow is also a commonly used one, mainly used to change the direction of the main pipe. It is mostly used between two pipes with a larger angle.
